NewG3 Four-Piston
Professional hydraulic disc brake
4-pistonØ180 / Ø203 mmWave rotorMid-motor e-bike
New · Professional hydraulic disc brake

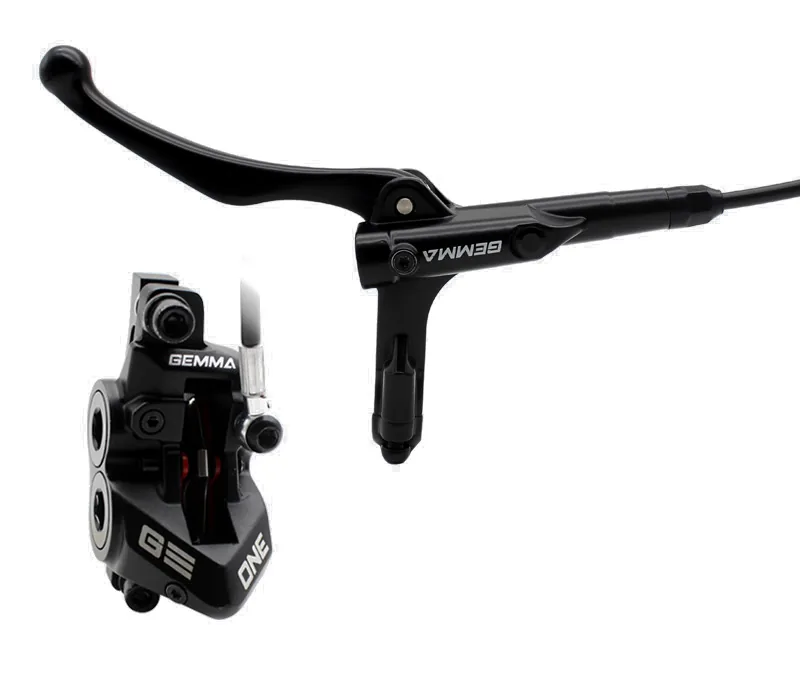

G3-1 Four-Piston
Lighter sibling of the G3 on an airflow rotor, for off-road and moped-class electric bikes with mid-motors.
Especially for off-road / moped type electric bikes.
Lighter sibling of the G3 on an airflow rotor, for off-road and moped-class electric bikes with mid-motors.
- 4-piston
- Ø180 / Ø203 mm
- Airflow rotor
- 251 g front
Specification
Standard lead time 60–75 days. Hose length, rotor size and pad compound are configured per order.
| System | Open system, 4-piston Recommended for e-bikes with mid-motor Easy installation, adjustment and maintenance Good braking effect for bikes with large torque and strong power |
|---|---|
| Caliper | 4-piston, forged aluminium body Easy installation and maintenance from top Finish: black |
| Weight | Front wheel — 251 g Rear wheel — 271 g Excludes rotor, adapter and mounting bolts |
| Lever | Forged aluminium lever / cast aluminium bracket I-Spec II and Matchmaker compatible Reach adjustment Two-piece hinged bracket 4-finger blade Finish: black |
| Rotor | Lightweight airflow type (G180) High heat dispersion and heat tolerance Diameter: Ø180 mm Also available: Ø203 mm |
| Pads | High-performance metal ceramic compound Replacement: sintered / resin |
Product sheet
Original description · Professional hydraulic disc brake
professional hydraulic disc brake
especially for off road / moped type ELECTRIC BIKE
SYSTEM
Open system, 4-piston
Recommend for e-bike with mid-motor
Easy installation, adjustment and maintenance
be good braking effect for bikes with large torque and strong power
CALIPER
4-Piston, Forged Aluminum body
Easy installation & maintenance from top
Finish : Black
WEIGHT
Front wheel - 251 grams / Rear wheel - 271 grams
( Exclude rotor, adapter & mounting bolts )
LEVER
Forged aluminum lever / Cast aluminum bracket
I-Spec Il & Matchmaker compatible
Reach adjustment
Two pieces hinged bracket
4 finger blade
Finish : Black
ROTOR
Lightweight airflow type (G180)
High heat dispersion & heat tolerance
Diameter : Ø180mm
Also available : Ø203mm

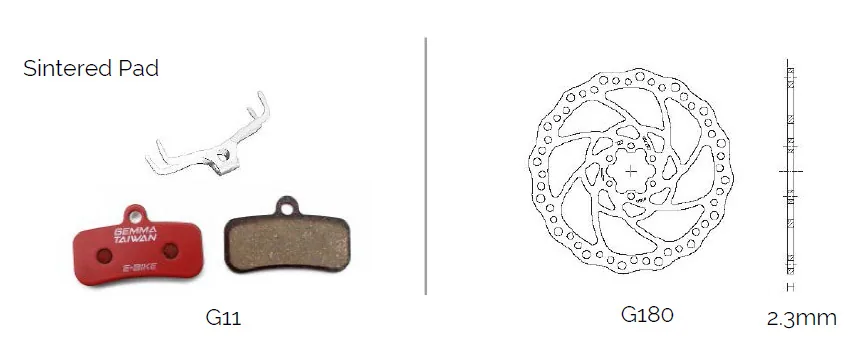

PADS
High performance metal ceramic
compound Replacement : Sintered/Resin
