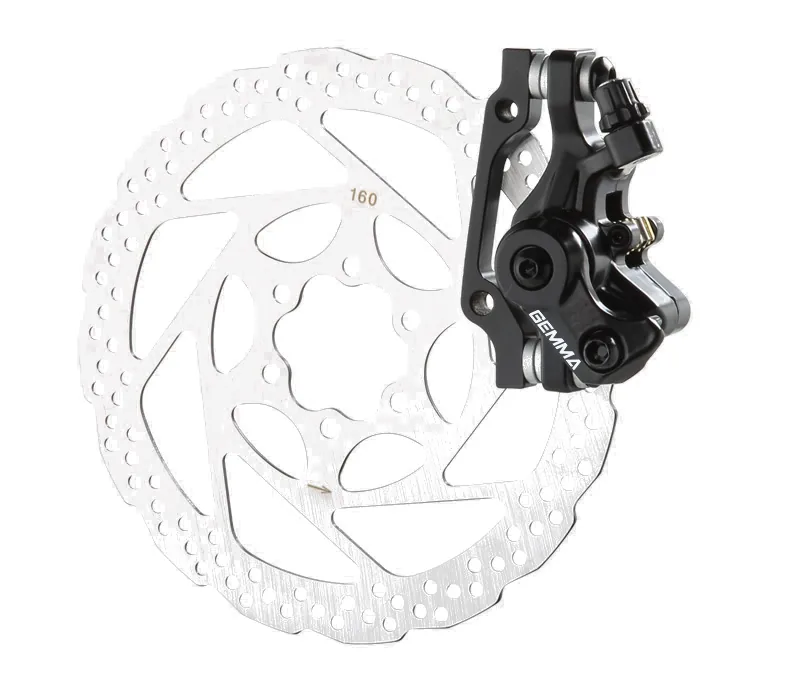

GA-730
Mechanical disc brake for e-bikes
MechanicalE-bikeF 222 g / R 226 gØ140–203 mm
Mechanical disc brake for folding lithium-battery e-bikes

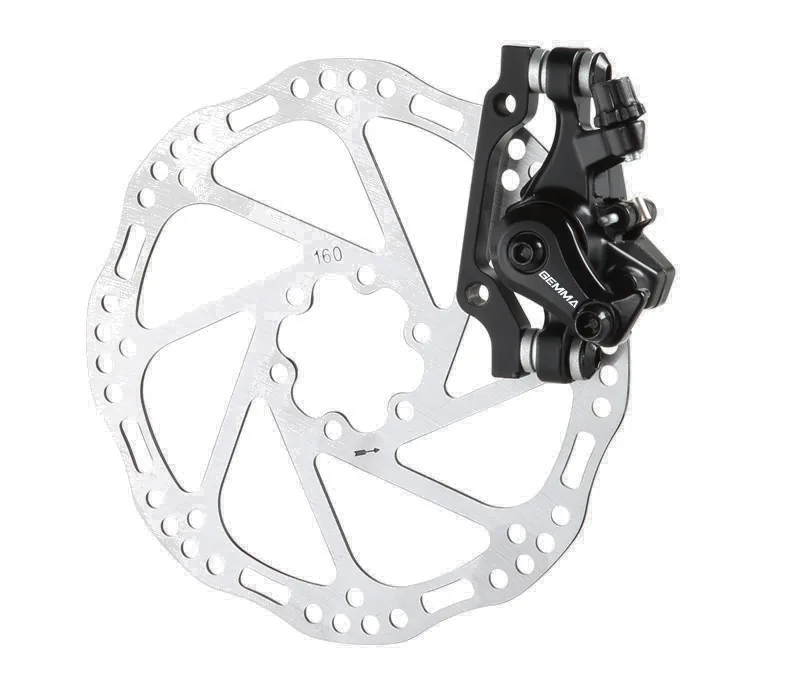

GA-320
Two-piece die-cast mechanical disc brake specially designed for folding lithium-battery e-bikes.
Mechanical disc brake for folding lithium-battery e-bikes
Two-piece die-cast mechanical disc brake specially designed for folding lithium-battery e-bikes.
- Mechanical
- Folding e-bike
- F 210 g / R 213 g
- Ø140–203 mm
Specification
Standard lead time 60–75 days. Hose length, rotor size and pad compound are configured per order.
| Features | Mechanical disc brake Two-piece, die-casting alloy caliper body Specially designed for folding lithium-battery e-bikes Metal ceramic compound available according to the durability requirements of the pad For a comfortable handlebar distance and short braking distance, a 3.5–4 finger electric control lever with 20–25 mm of travel is required |
|---|---|
| Weight | Front 210 g Rear 213 g |
| Rotor | Front: Ø203 / Ø180 / Ø160 / Ø140 mm Rear: Ø180 / Ø160 / Ø140 mm |
| Mount | 51 mm dimension for IS mount 74.2 mm dimension for post mount |
Product sheet
Original description · For Folding Lithium Battery E-Bike
For Folding Lithium Battery E-Bike
FEATURES
1.Mechanical Disc Brake
2.Two-piece,Die-casting alloy caliper body
3.Specially designed for folding Lithium battery E-bike
4.Metal ceramic compound available according to the durability requirements of the pad
5.For a comfortable distance of handle bar and short distance braking effect, A 3.5~4 fingers electric control lever with 20-25mm distance of travel is required ceramic compound available according to the durability requirements of the pad
Weight: F:210g R:213g
Rоtоr: F:Ф 20З/Ф 180/Ф 160/Ф 140
R: Ф 180/Ф 160/Ф 140
Note: 51mm dimension for IS Mount
74.2mm dimension for Post Mount
Related models

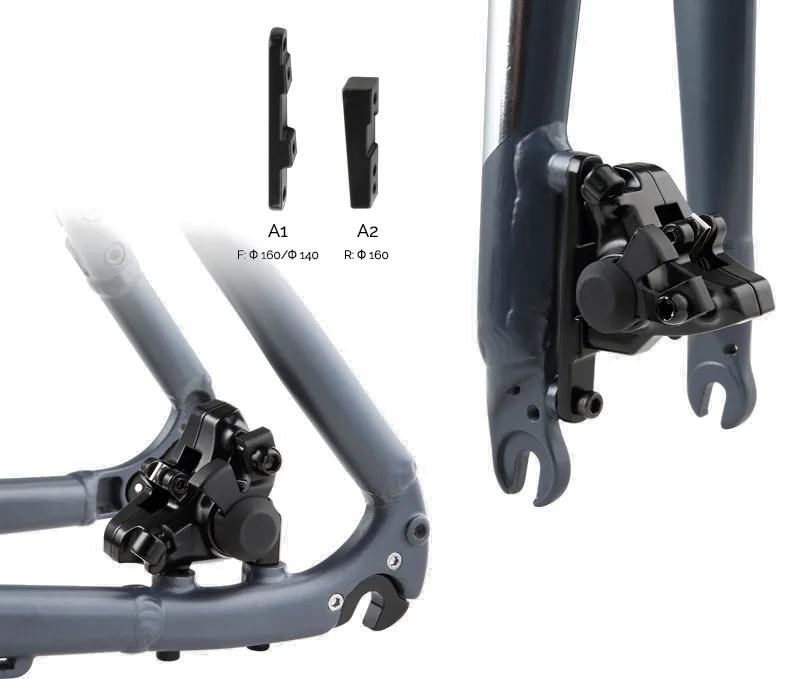

GA-610
Flat mount mechanical disc brake for road bikes
MechanicalFlat mount157 gØ140 / Ø160 mm
