Hydraulic disc brake (dual piston)
GA-600
Two-finger lever set with pre-cut front and rear hose lengths, post-mount and 51 mm IS compatible.
Hydraulic disc brake (dual piston)
Two-finger lever set with pre-cut front and rear hose lengths, post-mount and 51 mm IS compatible.
- Dual piston
- 2-finger lever
- 316 g
- Post mount / 51 mm IS
Specification
Standard lead time 60–75 days. Hose length, rotor size and pad compound are configured per order.
| System | Open hydraulic system |
|---|---|
| Caliper | Aluminium forged |
| Lever | 2 fingers |
| Mount | Post mount and 51 mm international standard |
| Rotor — front | 160 mm – 180 mm |
| Rotor — rear | 140 mm – 160 mm |
| Material | Aluminium alloy |
| Pads | Semi-metallic compound (model M07) |
| Finish | ED black |
| Weight | 316 g per piece |
| Hose — front (right) | 850 mm |
| Hose — rear (left) | 1,950 mm |
| Hose length | Can be custom-made |
Hose lengths shown are the standard cut. Custom lengths are quoted per programme.
Product sheet
Original description · Professional hydraulic disc brake
Hydraulic disc brake (DUAL PISTON)
Open Hydraulic System
Aluminum Forged Caliper
Lever:2. Finger
Compatible with post Mount and 51mm international standard
Rotor Options:
Front: 160mm~180mm
Rear:140mm~160mm
Material: aluminum Alloy
Pad: Semi-metallic compound(model:M07)
Finish:ED-Black
Weight of one piece:316g
Front Brake(right)-light of oil hose:850mm
Rear Brake(left)-light of oil hose:1950mm
The light of oil hose can be custom-made
(lead time til 2023)

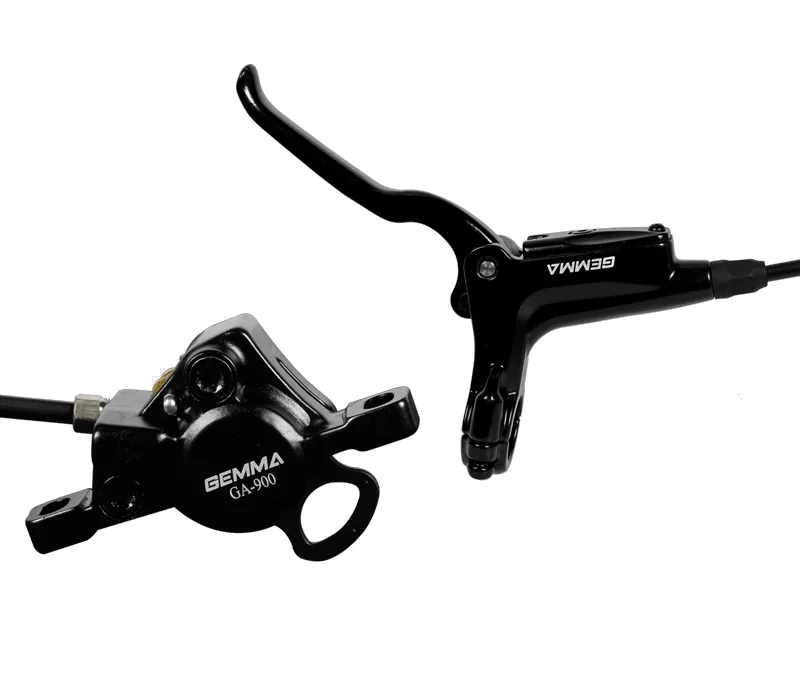

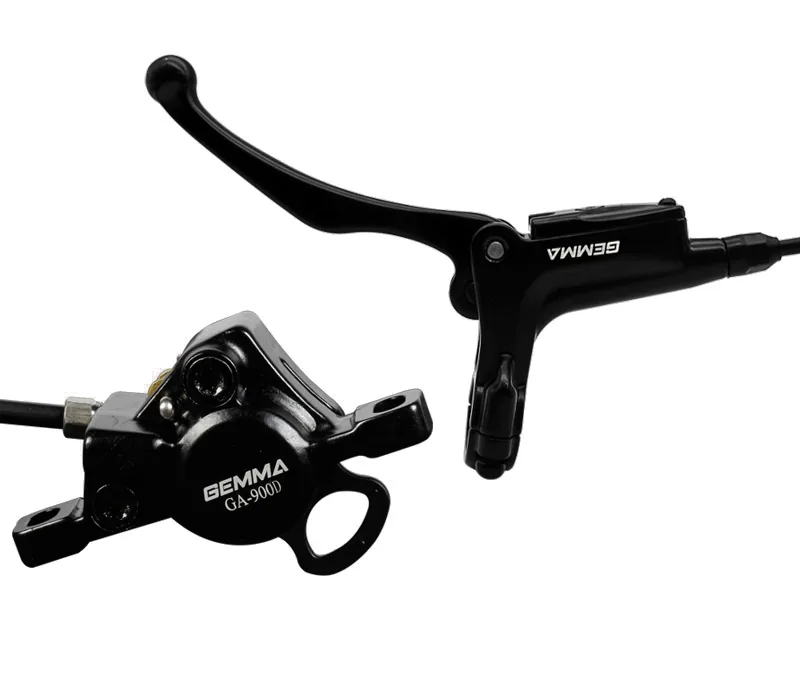

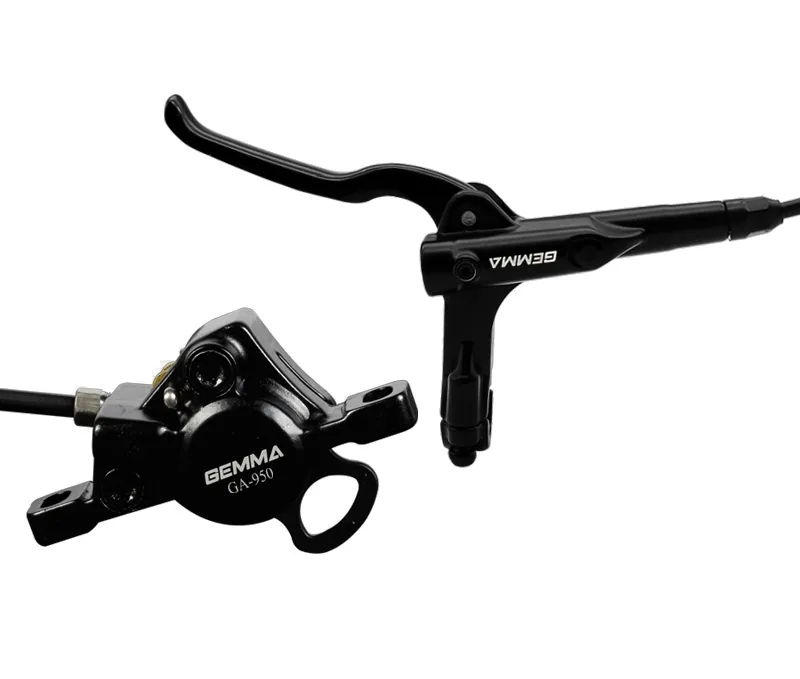

Related models
